ASSEMBLY OF facade
Here you get an insight into how the open Facade systems Woodfac Panel and Alufac Panel are installed.
All our Facade systems are like building with LEGO: they offer countless creative combinations, are easy to handle and ensure a precise, clear look with no visible screws.
The simple handling and uncomplicated plug-and-play installation consists of just three components that are fitted in three steps.
3 steps and 3 components
The three components - aluminum panel, wood or aluminum trim and mounting screw - are all prepared for thermal movement and offer full control over all stages of construction.Watch the video for a brief introduction to panel system installation and click on the image below to learn more about the three installation steps.
We strive to create a smooth and efficient process for our customers while delivering an exclusive product from design to installed façade.
Assembly in 3 steps
Setting up the system often begins with a start profile. Or with a rebate profile if the set-up starts at a window or door.
Start, end and rebate profiles are available in various widths.
The plate is angled into the previous coupling and is generally pulled to the right to achieve maximum tire width.
Then tilt the panel towards the suspension profile with a single movement - "click".
As soon as the panel is attached to the suspension profile, it is secured with stainless steel fastening screws.
The panels are prepared for thermal movement. The thermal 0-point must be positioned evenly on all panels.

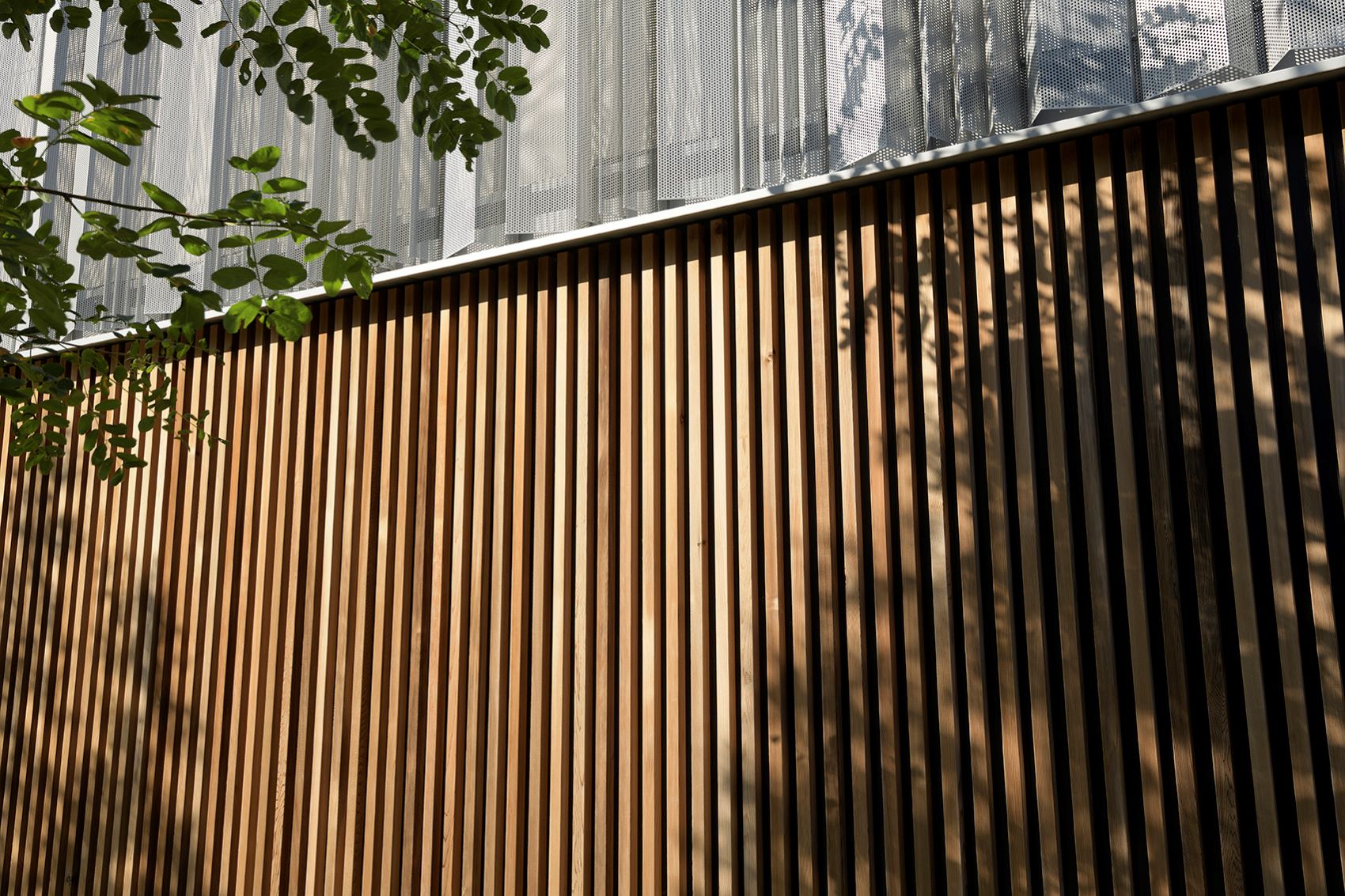

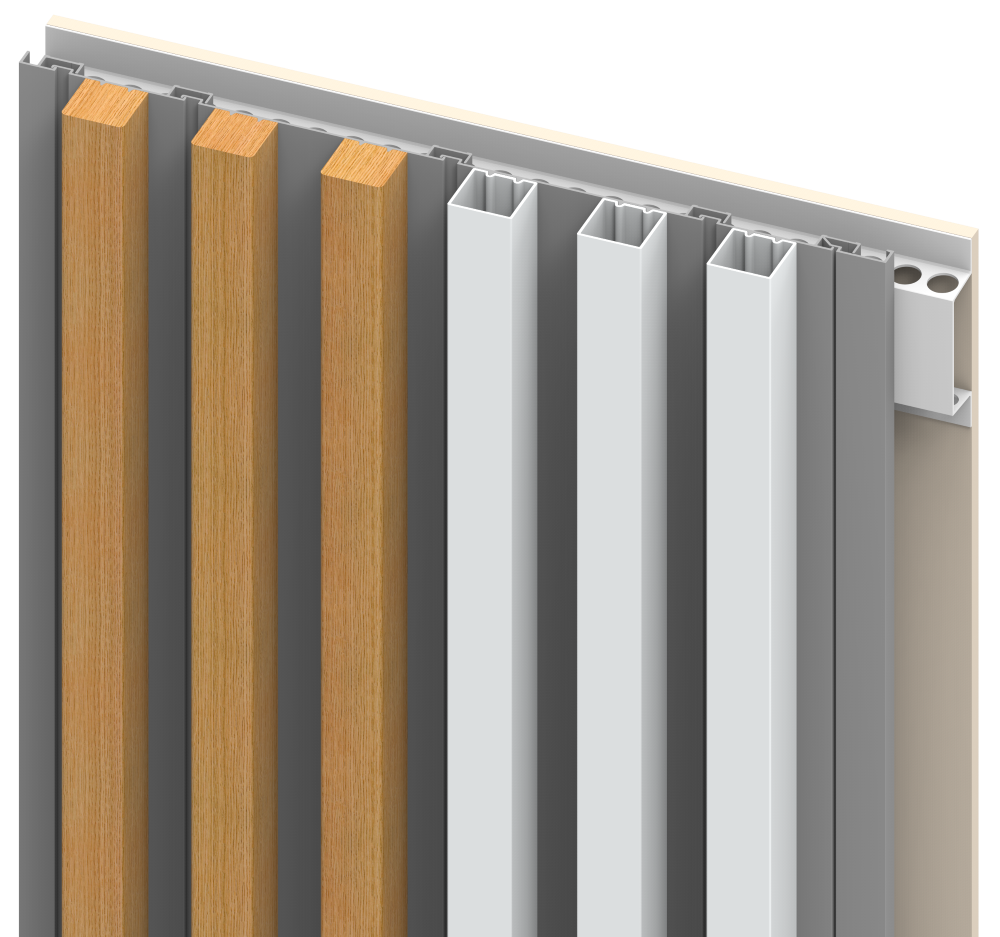

Woodfac panel
Woodfac Panel is a closed Facade system with optional Wooden lamellae on a backing construction made of recycled aluminum.
The system functions as an effective climate protection envelope that protects the building from the effects of the weather, while the façade retains its ability to breathe thanks to the ventilation behind it.
alufac panel
Alufac Panel is a versatile panel system that combines aesthetics and functionality in a solution that can be adapted to your specific requirements - without restricting architectural freedom.
It is a closed Facade system, comparable to the Woodfac Panel, but with the decisive difference that Alufac Panel consists of aluminum slats instead of wood. Alufac Panel is a system with Lamellae slats made of Greenline aluminum.
